114 WIRES - LIFT AND ELEVATOR ROPES

cavo di acciaio ascensori 114
cavo di acciaio ascensori 114
  • Tiranti e Accessori

Collegamenti

6x19+FC cable in bright steel - ELEVATORS

Characteristics:

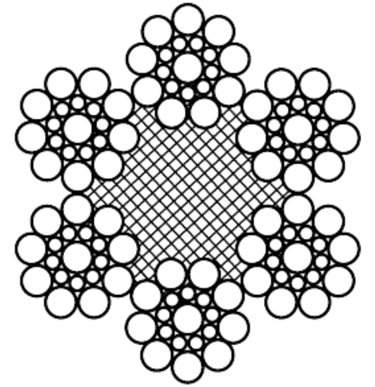

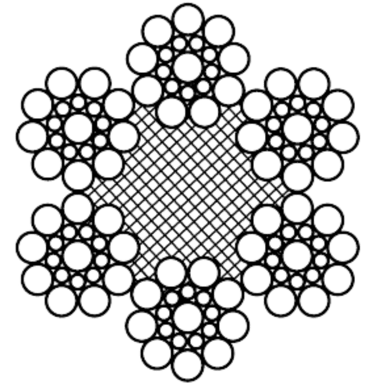

6-strand bright steel rope with 19 wires each + textile core (FC). Right/left cross.

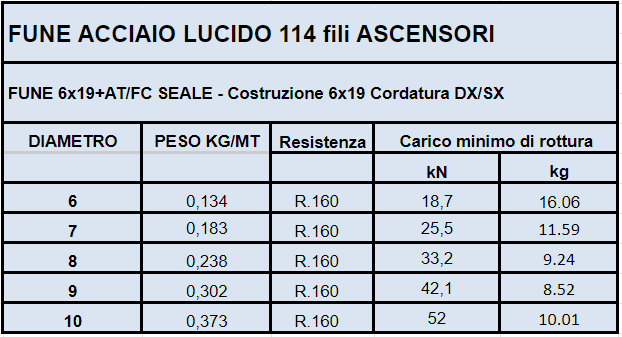

Technical data sheet

Usage:

Lift and Elevator rope.

Rope typically produced in diameters 6, 7, 8, 9, and 10.

The values ​​shown in the table are theoretical and should be considered indicative and not binding.

Nomenclature according to ISO 3578

INDEX:

FC/AT = Fiber Core/Anima tessile;

IWRC/AM = Anima metallic/Metal Core;

N = Trefolo normale/Regular Strand

WS = Trefolo Warrington-Seale/ Warrington-SealeStrand

S = Trefolo Seale/Seale Strand
