WIRE ROPE SLINGS:

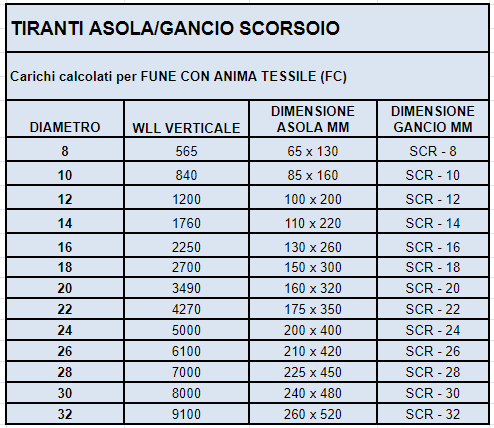

Soft Eye-Sliding chooker hook (A/Gs)

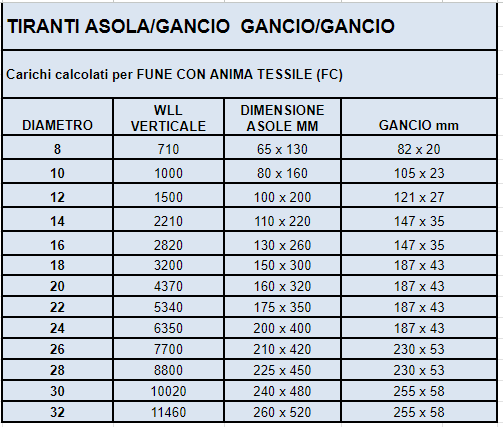

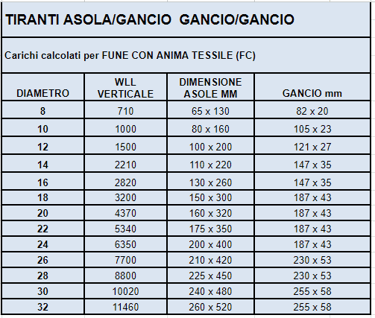

Soft Eye- Single Hook e Hook-Hook (A/G - G/G)
Soft Eye- Master Link e Master Link- Master Link (A/C - C/C)
Master link-Hook (C/G)

Characteristics:
Wire rope slings are custom-made based on the customer's specific requests and needs. These characteristics may therefore vary

Technical data sheet

Usage:

For support, movement, anchoring, tensioning, stabilization.

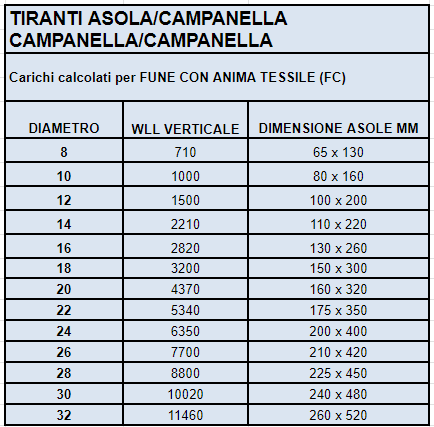

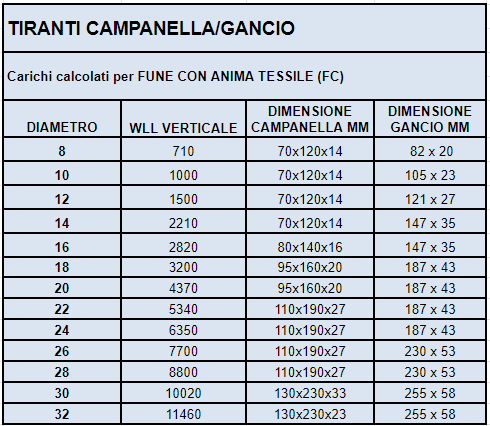

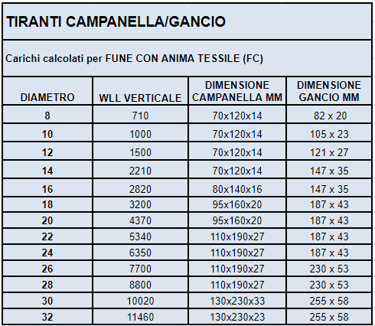

LOADS ARE CALCULATED FOR ROPES WITH A FIBER CORE. LOADS ARE INDICATIVE AND MAY VARY BASED ON CUSTOMER REQUIREMENTS.

WLL: WORKING LOAD LIMIT / CARICO LIMITE DI LAVORO

The WLL was sized with a safety factor of 5. 60°, 90°, and 120° refer to the maximum vertex angles. Load capacities are expressed in kg.

The values ​​shown in the table are theoretical and should be considered indicative and not binding.

Nomenclature according to ISO 3578

INDEX:

FC/AT = Fiber Core/Anima tessile;

IWRC/AM = Anima metallic/Metal Core;

N = Trefolo normale/Regular Strand

WS = Trefolo Warrington-Seale/ Warrington-SealeStrand

S = Trefolo Seale/Seale Strand
